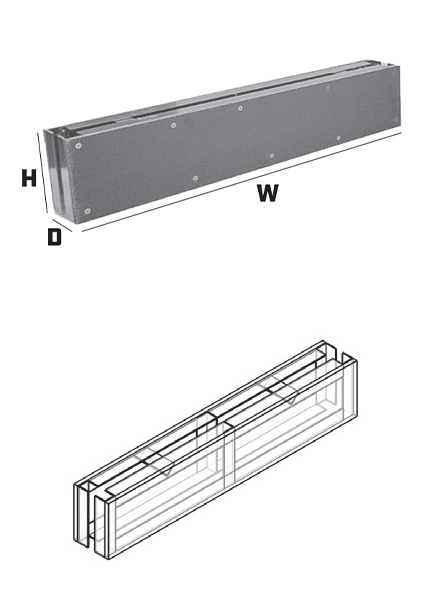

Wall frame for kitchen backsplash. 5” deep × 7” tall is standard. To be attached to top back of cabinet. Mid-span stud supports are included for widths over 30”. Side panel cladding included as needed.
BS: For Use With - ALL GC, FLBC, & BC Models
BST: For Use With - ALL GC, FLBC, & BC Models
NOTE: Do not place behind grill
NOTE: Width measurement includes permabase
NOTE: Depth measurement includes permabase
Backsplash comes in two pieces. Side panel cladding included
as needed.

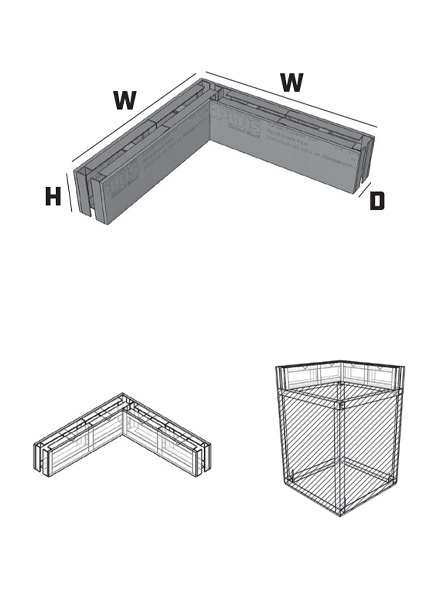

BS-CC: For Use With - Corner Cabinet
BST-CC: For Use With - Corner Cabinet
NOTE: Width measurement includes permabase
NOTE: Depth measurement includes permabase

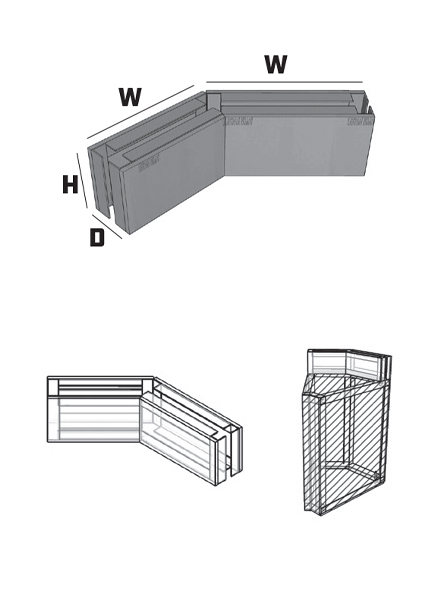

Backsplash for WBC. Comes in two pieces. Side panel cladding included as needed.
BS-WBC: For Use With - Wedge Base Cabinet
NOTE: Width measurement includes permabase
NOTE: Depth measurement includes permabase

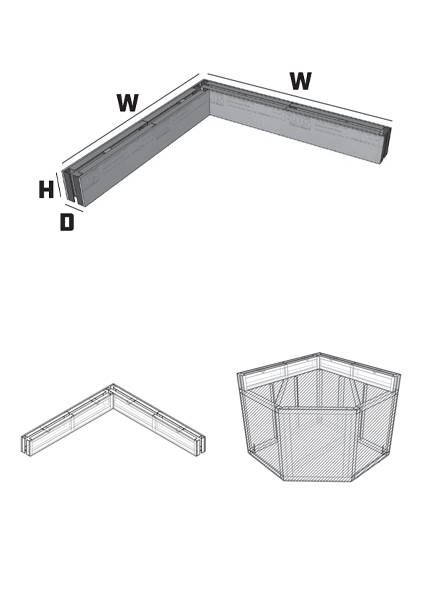

Backsplash for FLCC45. Comes in two pieces. Side panel cladding included as needed.
BS-FLCC: For Use With - Front Load Corner Cabinet
NOTE: Width measurement includes permabase
NOTE: Depth measurement includes permabase

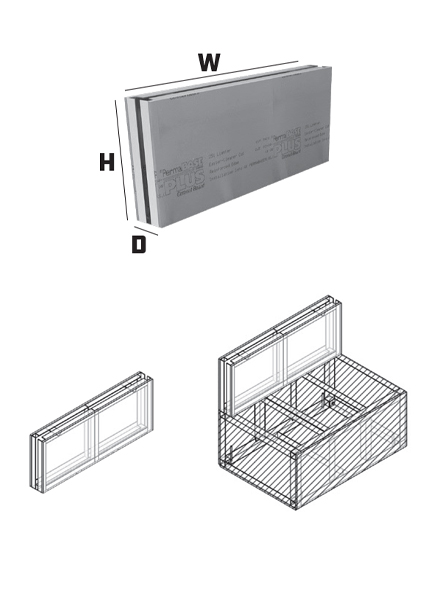

Optional backsplash for drop base cabinets. Backsplash comes with back wall cladding to cover entire height of the cabinet. Order back walls separately to create a matching set. Cabinet height combined with back wall height must equal 35”. Side panel cladding included as needed. When using the back wall, the base cabinet depth goes from 29” - 36” to accommodate lid clearance.
BS-DBC-36-13: For Use With - DBC-36
BS-DBC-36-17: For Use With - DBC-36
BS-DBC-39-13: For Use With - DBC-39
BS-DBC-39-17: For Use With - DBC-39
BS-DBC-42-13: For Use With - DBC-42
BS-DBC-42-17: For Use With - DBC-42
NOTE: Width measurement includes permabase
NOTE: Depth measurement includes permabase
